Bag Filter/Dust Collector

Bag Filters are the most effective and efficient solutions for cleaning dust-laden air or gases generated by various industrial processes. These filters are essential for controlling air pollution, reducing or eliminating the emission of pollutants into the atmosphere. When pollutant levels exceed permissible limits, Bag Filters are deployed to capture or trap these pollutants at their source before being released into the environment.

In today’s world, an effective air pollution control system is critical to comply with stringent emission regulations. Bag Filters provide a cost-effective, simple, and reliable method of removing pollutants from the air or gases released during industrial operations, material handling, and more.

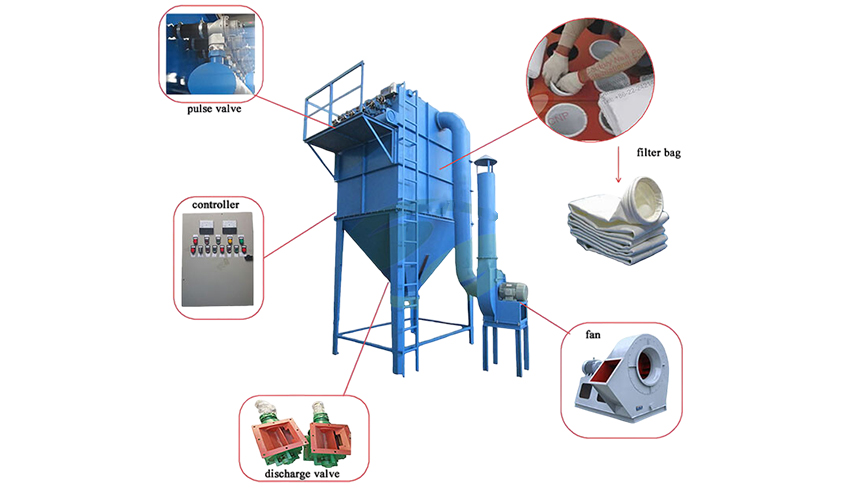

The Bag Filter consists of filter bags housed in a chamber. Below the chamber is a hopper with a discharge valve that facilitates the removal of collected dust. The entire unit is supported on a strong structure. Dust-laden gas enters the unit through the hopper via suction, then rises through the bags where dust particles are trapped on the outer surface of the bags. Clean air moves through the inner surface of the bags into the clean air chamber and is released into the atmosphere. The bags are cleaned row by row using a pulse cleaning mechanism, activated by a pulse valve controlled by a sequence timer.

Handling Capacity: Up to 50,000 Am3/hr

Emission Levels: Can achieve levels as low as 20 mg/Nm3

High Efficiency: Ensures low operating costs with superior performance

Temperature Resistance: Capable of handling high temperatures up to 240°C

Versatile Fabrics: Available in various fabrics such as Polyester, Polypropylene, Ryton, Nomex, etc., tailored to meet specific application needs

Highly Efficient: Provides superior dust collection efficiency, even at high dust concentrations.

Environmentally Friendly: Reduces pollutants in the atmosphere, contributing to a cleaner and healthier environment.

Reliable Performance: Ensures long-lasting and reliable performance with low maintenance.

Wide Range of Applications: Suitable for use in various industries, including food, chemical, pharmaceutical, cement, and more.
